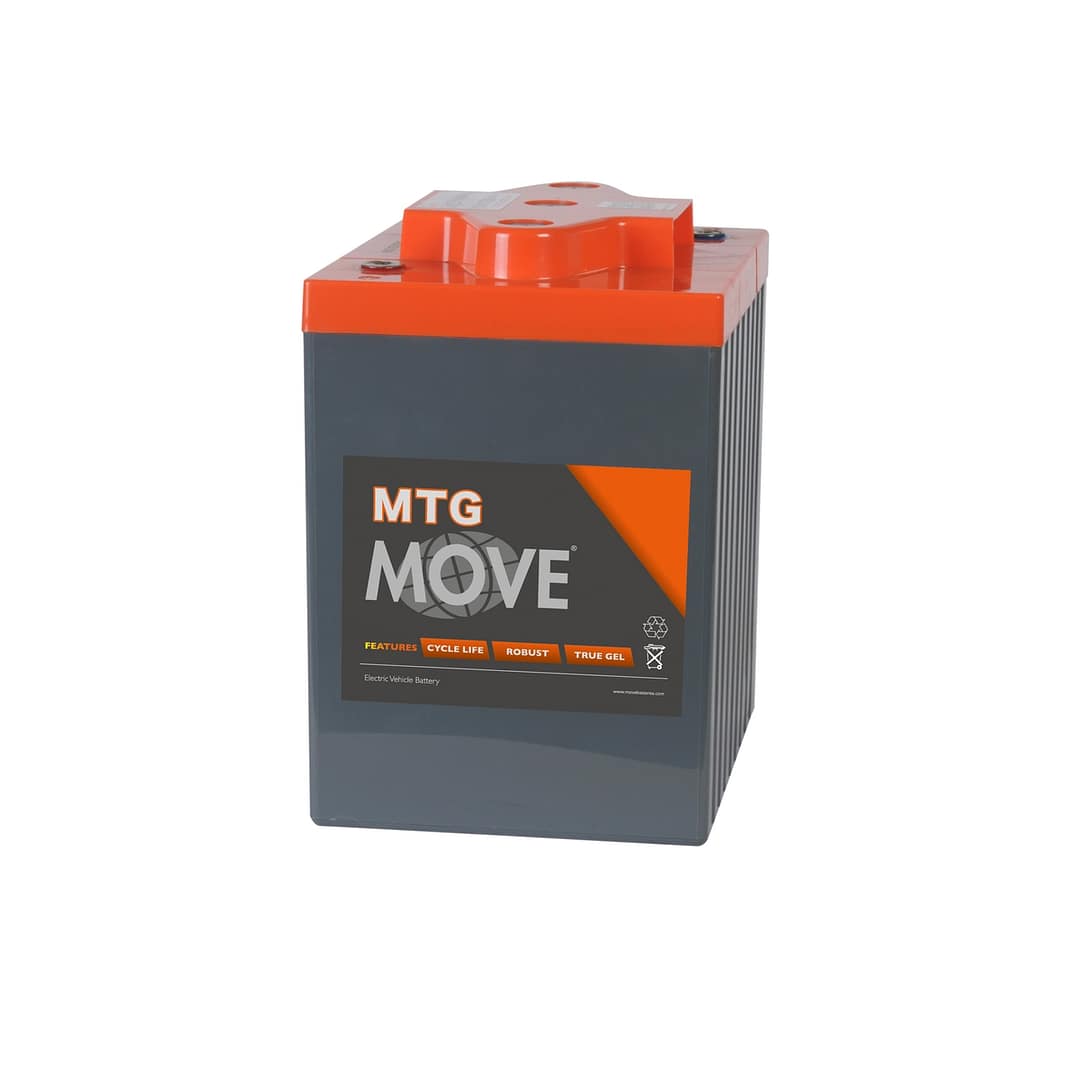

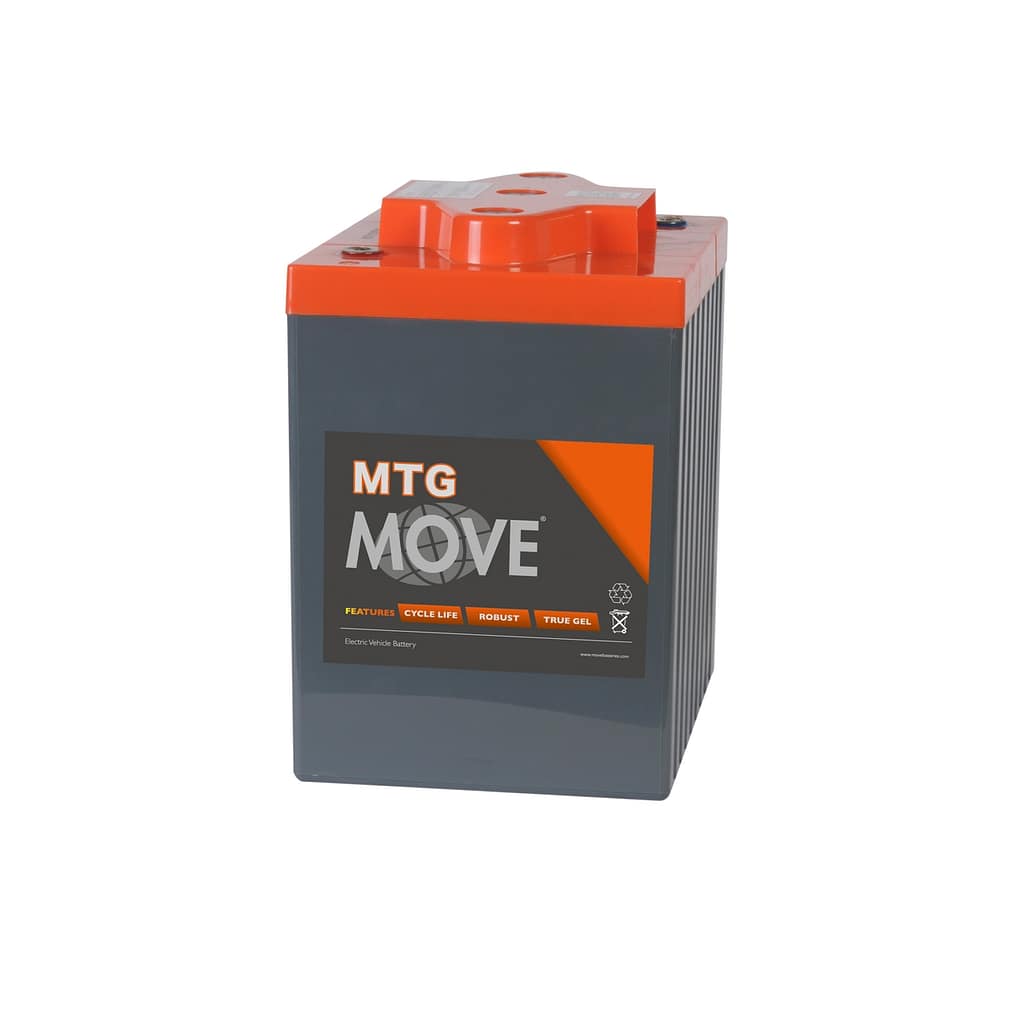

Move MTG 210-6 accu

 525,00

6V 210Ah  GEL-accu

  • Maintenance-free bloc battery
  • Stable high current performance for extreme conditions
  • High-class patented safety valve
  • Valve-regulated lead-acid battery filled with thixotropic gel
  • Classified as a non-spillable battery
  • 700 cycles according to IEC 254-1 / DIN EN 60254-1
Categorie:

Specifications

  • Nominal Voltage: 6V
  • 80% DoD Voltage Cutoff: 5.7V (1,90 VPC)
  • Nominal capacity @20 hour rate: 1.75VPC, 210Ah
  • Capacity at 25°C:
    • 10 hour rate: 198Ah
    • 5 hour rate: 184Ah
  • Shelf time @20°C up to 70%: 12 months
  • Self discharge per month: <3% (20°C)

Dimensions

  • Dimensions LxWxH (T) in mm: 242 x 186 x 251
  • Weight: 32kg (±2%)
  • Separator: AGM, Glass Matt
  • Case and cover: ABS
  • Terminal: M8 Insert
  • Torque setting (recommended): n/a
  • BCI-Group: DIN

Charging

  • Operating temperature for (dis)charge: -10°C to + 50°C
  • IU Charging:
    • I = Min 20Amp / max. 30Amp
    • U = 2.43 per cell
  • IUI Charging:
    • I1 = Min. 20Amp / max. 30Amp
    • U = 2.38V per cell
    • I2 = Min. 2.5Amp (for max. 4 hours to max. 2.65V per cell)
  • Float-Voltage:
    • U-float = 2,30VPC
  • Temperature compensation is 3 Mv per degree°C up or down from 25°C

Download de PDF hier »
